Different Material for Woven Wire Mesh Commonly used as Insect Screen
As one of the biggest wire mesh manufacturers, King De Long Wire Mesh Company offers a wide range of woven wire mesh specifications, of course, including the home use insect screen or window screen. Besides the weaving, we could also do the slitting, cutting, and welding with these woven meshes. So, it is very convenient for us to offer our customers various mesh widths, such as 24", 36", 48", 60", 72", and so on.
There are several commonly used materials for this Insect Screen, if you have some other specific items not listed here, please contact us.
Aluminum
It is one of the most commonly used materials for window and insect screens. Its lightweight, low cost, and bright color make it extremely popular for users who are looking for a lightweight, easy to work with, and corrosion-resistant material.
Stainless Steel AISI304
Its natural color is silver but not as bright as the electro-galvanized or aluminum wire. Its good physical and mechanical properties make it the most popular material used all over the world in various industries, including house and architecture use.
Stainless Steel AISI316
It has the same color and surface as the AISI304 but has better physical and mechanical properties, such as better corrosion resistance, wear resistance, etc. It was more often used in harsh surroundings, like saltwater environments.
Bronze
Bronze insect screen is more requested by the top end user, who wants a distinctly unique color and look, especially for those designers. Compared with the red copper and yellow brass, the bronze mesh would be easier oxidized with the unique patina color on the surface. Anyway, it has very good corrosion resistance, especially in seawater environments.
Copper
Copper wire is also often requested by designers and top-end users for those unique building projects, including personal houses, luxury hotels, and prominent universities. After exposure for some time, red copper would be dark amber-red in color, and also with a unique patina. Its corrosion resistance was very good too.
Electro Galvanized
Bright and silver color outside, but it would be rusted easily over time. So its use was not very popular, unless in those poor but dry areas with its low cost.
Here are some very commonly used specifications for the insect screen, just for your reference. Other specifications, sizes, and woven types are made to order. Please contact our sales team to discuss this.
| Typical Woven Wire Mesh used as Insect Screen |
| Mesh | Wire Dia. (mm) | Aperture (mm) | Length (m) | Width (m) |
| 8 | 1.6 | 1.58 | 50 | 0.5 - 1.5 |
| 8 | 1.4 | 1.78 | 50 | 0.5 - 1.5 |
| 8 | 1.2 | 1.98 | 50 | 0.5 - 1.5 |
| 8 | 1 | 2.18 | 50 | 0.5 - 1.5 |
| 8 | 0.71 | 2.47 | 50 | 0.5 - 1.5 |
| 10 | 1 | 1.54 | 50 | 0.5 - 1.5 |
| 10 | 0.5 | 2.04 | 50 | 0.5 - 1.5 |
| 12 | 1 | 1.12 | 50 | 0.5 - 1.5 |
| 12 | 0.6 | 1.52 | 50 | 0.5 - 1.5 |
| 12 | 0.45 | 1.67 | 50 | 0.5 - 1.5 |
| 14 | 0.64 | 1.17 | 50 | 0.5 - 1.5 |
| 14 | 0.45 | 1.36 | 50 | 0.5 - 1.5 |
| 14 | 0.28 | 1.53 | 50 | 0.5 - 1.5 |
| 16 | 0.7 | 0.89 | 50 | 0.5 - 1.5 |
| 16 | 0.5 | 1.09 | 50 | 0.5 - 1.5 |
| 16 | 0.28 | 1.31 | 50 | 0.5 - 1.5 |
| 18/16 | 0.28 | 1.14/1.35 | 50 | 0.5 - 1.5 |
| 18 | 0.58 | 0.83 | 50 | 0.5 - 1.5 |
| 18 | 0.38 | 1.03 | 50 | 0.5 - 1.5 |
| 18 | 0.23 | 1.18 | 50 | 0.5 - 1.5 |
| 20 | 0.5 | 0.77 | 50 | 0.5 - 1.5 |
| 20 | 0.4 | 0.87 | 50 | 0.5 - 1.5 |
| 20 | 0.22 | 1.05 | 50 | 0.5 - 1.5 |
| 24 | 0.35 | 0.71 | 50 | 0.5 - 1.5 |
| 24 | 0.2 | 0.86 | 50 | 0.5 - 1.5 |
Attention
Be careful of the cutting sharp edge, and avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list, where we put our over-run bargain rolls at lower prices.
King De Long Wire Mesh can manufacture not only woven wire mesh but also welded wire mesh with the specified wire and mesh size you required. Should you have a particular specification in mind, please contact us to discuss your requirements.

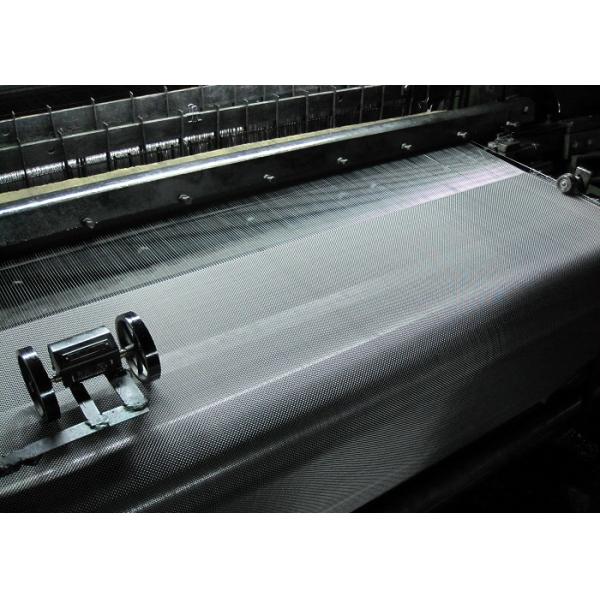

For your reference, some photos of our products and factory are listed here, please check.
